Revo Uninstaller Pro Online User's Manual

2. User Interface

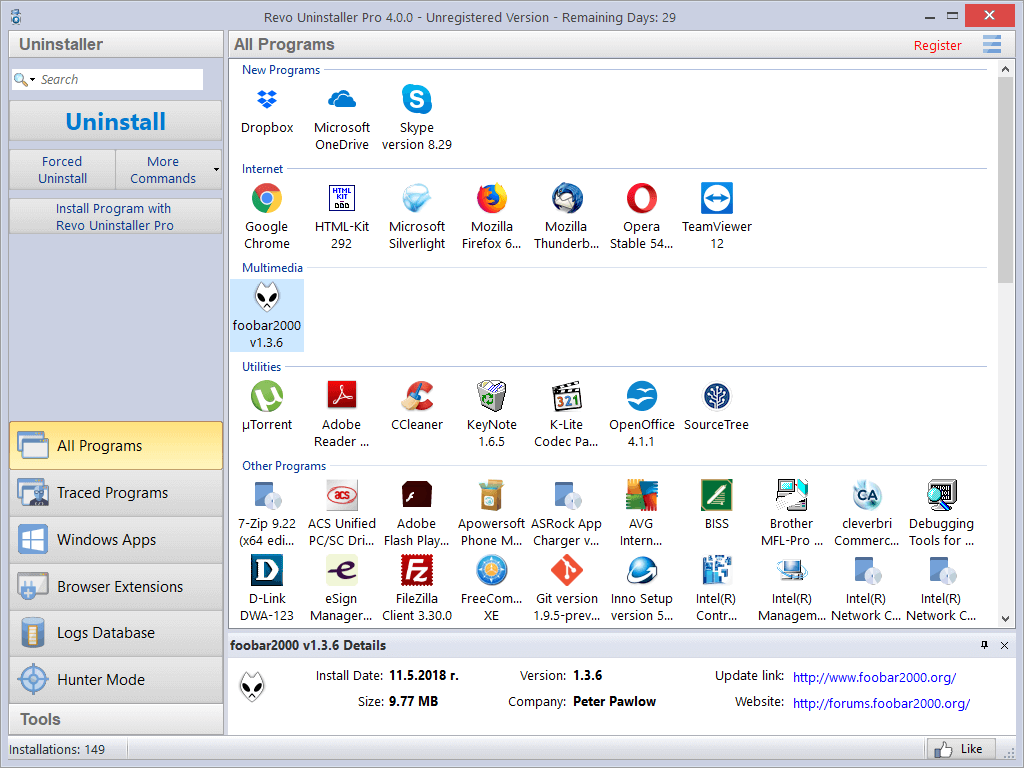

Screenshot of user interface of Revo Uninstaller Pro

The main window of Revo Uninstaller Pro is divided into few movable and flexible user interface components. By default the Menu Bar is at the top of the main window. It can be turned on and off from the View menu, and it can be moved by dragging (pressing the mouse button over a place different than a menu item).

The Commands toolbar is located beneath the menu bar. It contains the available commands for the current active tool. The Commands toolbar can also be turned on and off from the View menu, and can be moved by dragging too (pressing the left mouse button over a part of the toolbar different than a button). You can show or hide the text of the icons from the options. The size of the icons can be changed from the options too.

The Main toolbar contains some of the main features of Revo Uninstaller Pro. By default it is hidden, but it can be turned on from the View menu and, just like the Commands Toolbar it can be moved and resized from the Options.

The Tools toolbar is located at the left side of the main window. It contains the tools, included in Revo Uninstaller Pro. Commands toolbar-like icon and text size adjustment is also available here.

At the bottom of the main window is the Status Bar. Depending on the active tool it can show some additional information. It can be turned on and off from the View menu.

The Description Panel is by default located above the status bar. It shows some common information about the active tool. It can be turned on and off from the View menu and it can be moved by dragging (pressing the mouse button anywhere in its window). The Description Panel supports also an “auto hide” feature that hides and shows the panel on mouse over. To activate/deactivate the “auto hide” option press the small button with the shape of a pin in the right upper part of the panel window.

When the All Programs or Traced Programs module is activated and the shown list is in Icon or List mode, the Description Panel is used as Details Panel when an item is selected, thus showing some of the important properties of the selected item.

Currently active tool is shown in the middle part of the main window. Many tools can be open at the same time, but only one of them is active. To navigate among the open tools just press their tabs on top of the active window. You can also open a tool by pressing its button on the Tools toolbar or using the Tools menu.
